Air Force GSE

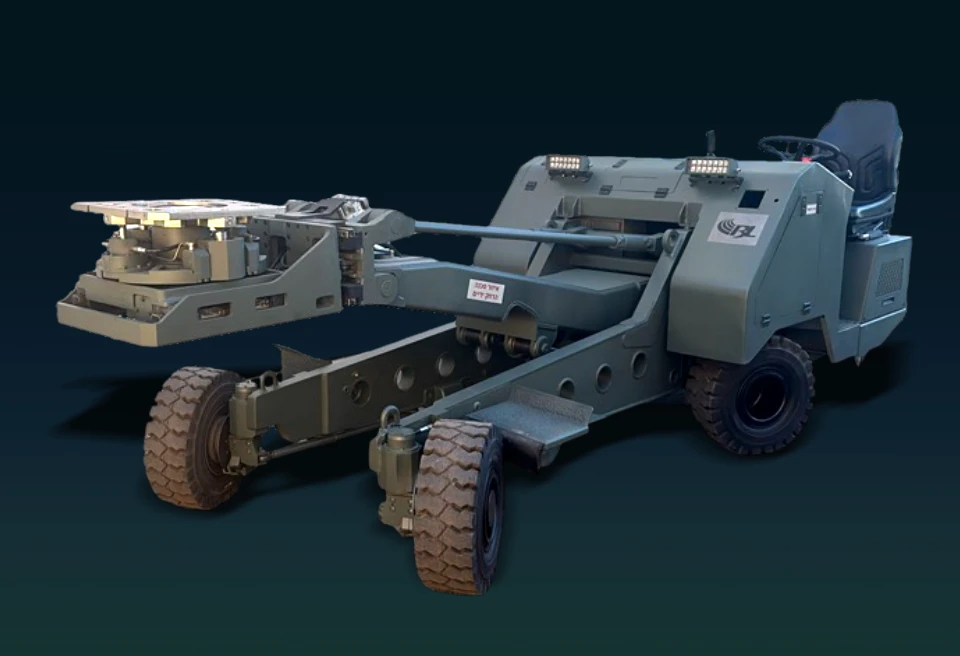

Weapon Loaders

• Self-propelled automotive control
• Payloads of up to 2,300 kgf (5,000 lbs @ FOS = 1.2)
• Dual-axle steering for high maneuverability
• Rapid reloading cycles
• Optional DBW capability
• Optional remote controlled
• Various attachments

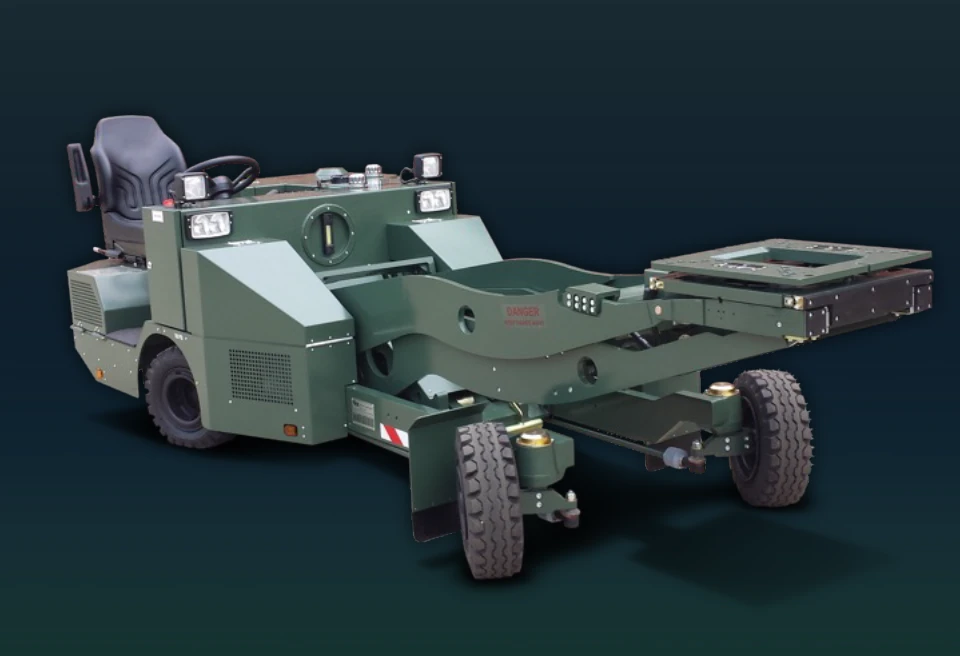

Weapons Loader SRR

• Payload capacity of 7,000 lbs. (FOS > 3.0) Nuclear component certified.
• 4-wheel steering allowing a reduced turn radius of 8’2” (17’3” on the MHU-83)
• Modern and intuitive user interface, complete with built-in-test capability for all loader functions
• Reduced noise/emissions thanks to modern engine standards, and engine controls
• Electrification ready

• Diesel powered (Cat C4.4 129hp)

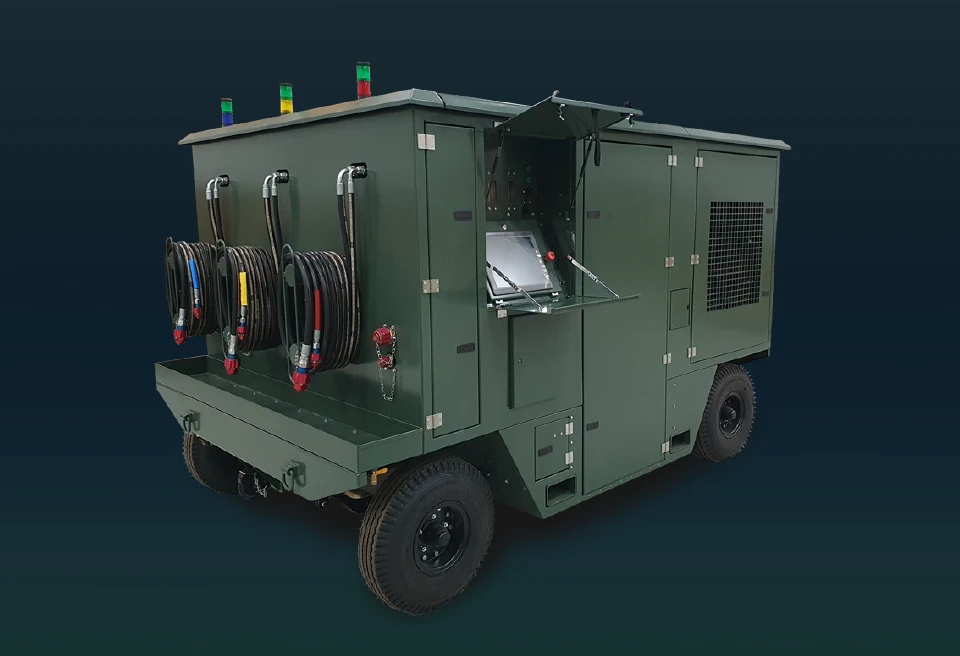

• 3rd Gen mobile independent HPU
• Current configurations:
  • 1 system @10 GPM, 300 PSI
  • 2 system @10 GPM, 300 PSI
  • 3 system @10 GPM, 300 PSI

• Electric units (380V 3P 125A)

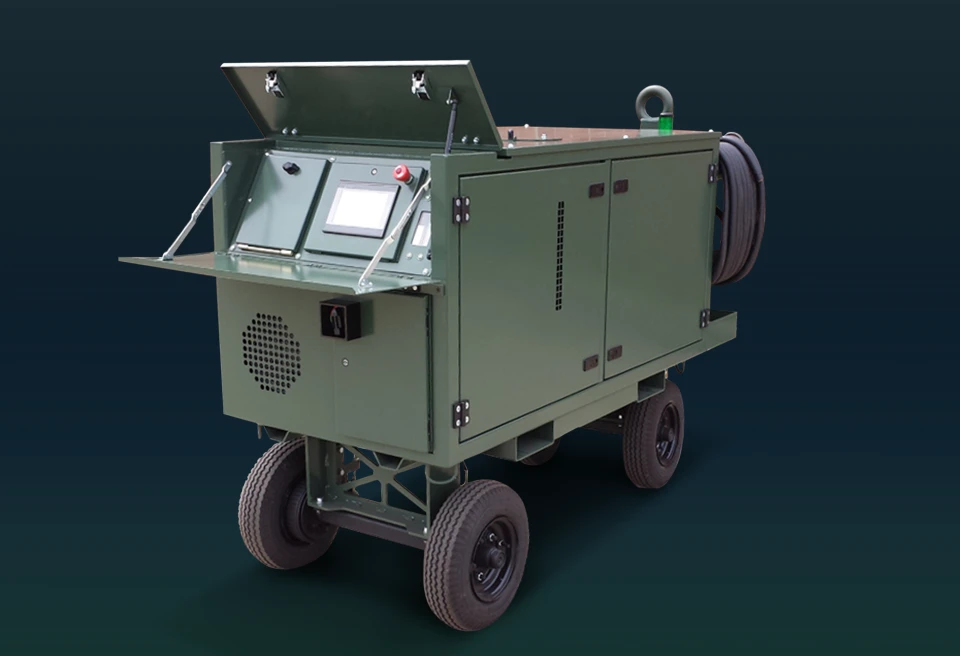

• 3rd Gen workshopqservice  bay HPU
• Current configurations:
  • 1 system @10 GPM, 3500 PSI
  • 2 system @7.5 GPM, 3000 PSI
  • 3 system @20 GPM, 3000 PSI

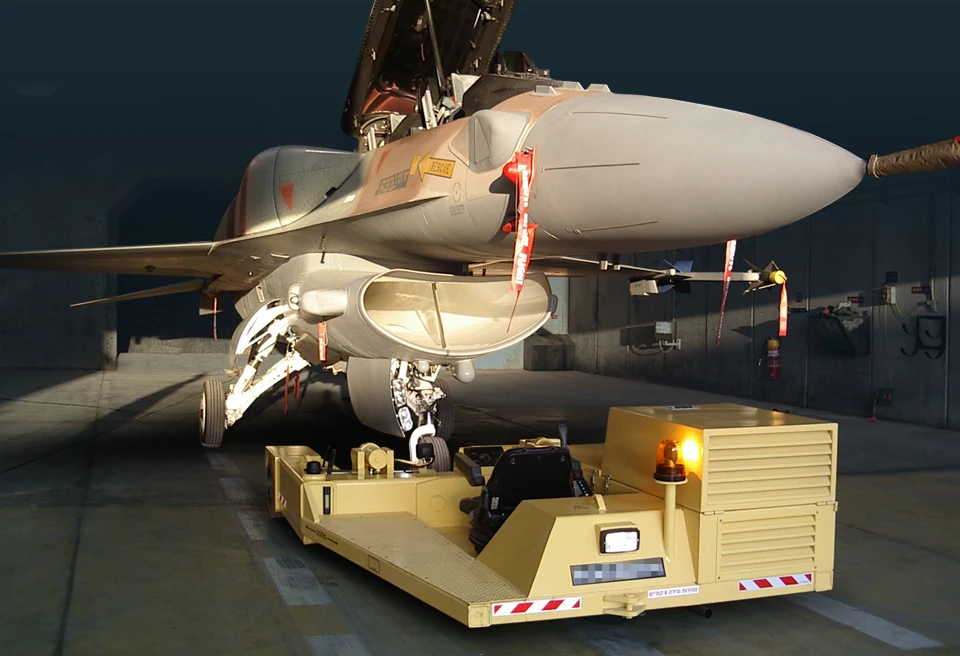

• Towbarless tug for military aircrafts (fixed/rotating wing)
• Complete drive-by-wire (Remote control as option)
• Electronic landing gear load limitation
• Towing slope monitoring
• Digital camera assisted aircraft connection
• Optional electric (zero emission) operation
• Optional crane attachment
